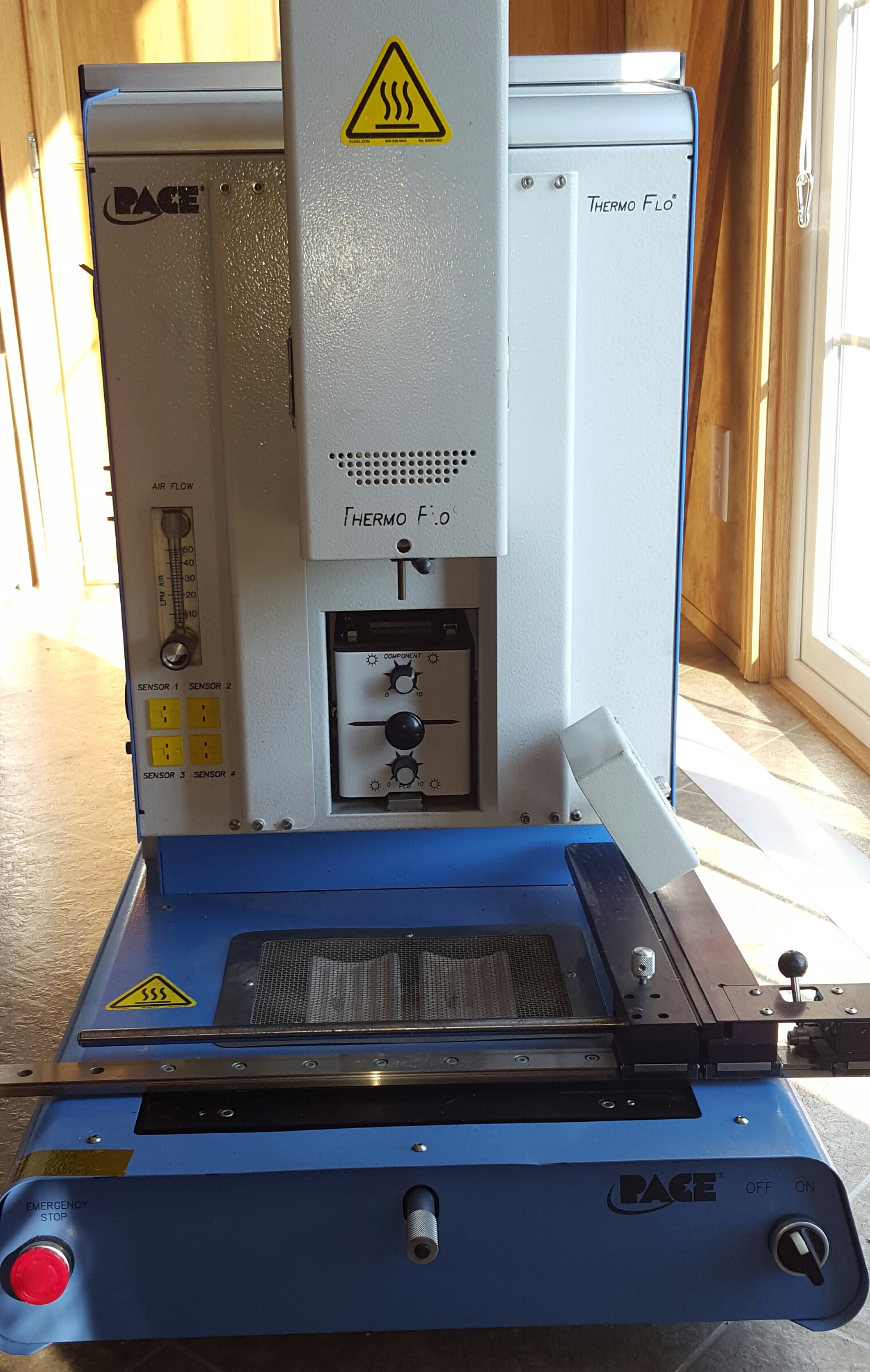

Pace Rework Station TF 1500

Part Number: 8007-0410

Dimensions: 737 mm H x 686 mm W x 737 mm D (29″ X 27″ X 29″)

Weight (w/o computer): 45 kas (100 lbs)

Power Requirements: 115 VAC, 60 hz or 230 VAC, 50 Hz | 2000 watts

PC: Pentium 4, 256M Ram, Floppy, CD

Top Heater: Adjustable convective air (air or N2), Maximum 20 SLPM, 1600 watts 100 to 400 deg C, 212 to 750 deg F

Bottom Heater: IR, 400 watts, 2 @200w each 100 to 221 deg C, 212 to 430 dea F

Vacuum: 450 mm Ha

Optics: High resolution, Dual Color Vision Overlay System

Positioning Accuracy (Z travel): +/- 25 umeters I0.001″l

Video: 2 Composite Video (external)

1 ·s• Video (Internal)

15″ Integrated color Flat Panel Monitor

PC Board Size: 305 x 305 mm, 12″ x 12″

Component Size: 35 mm x 35mm, 1.38″ x 1.38″ max.
